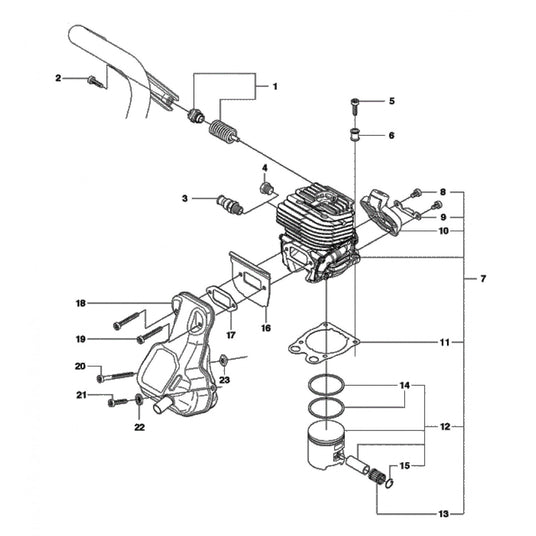

Husqvarna K760 Part Diagram - Cylinder Piston Muffler
| Ref. | Image | SKU | Description | Price | Buy |
|---|---|---|---|---|---|
| 1 | 5054245.01 | Husqvarna Spring Holder |
£13.95 GBP
|
||
| 2 |
|
544 06 12 01 | Genuine Husqvarna K750 K760 K770 Screw - 544 06 12 01 |
£1.55 GBP
|
|
| 3 | 503 71 53 01 | Genuine Husqvarna K750 K760 K770 Decompression Valve |
£12.86 GBP
|
||
| 4 |
|
503 55 22 01 | Genuine Husqvarna K750 K760 K770 Plug |
£6.21 GBP
|
|
| 5 | 503 21 53 25 | Genuine Husqvarna K760 K970 Screw |
£1.56 GBP
|
||
| 6 | 581 47 61-04 | Genuine Husqvarna K760 K770 Cylinder (New Type) |
£143.09 GBP
|
||
| 7 | 503 21 53 16 | Genuine Husqvarna K750 K760 K770 Screw - 503 21 53 16 |
£1.44 GBP
|
||
| 8 |
|
506 36 88 01 | Genuine Husqvarna K750 K760 K770 Bracket - 506 36 88 01 |
£2.00 GBP
|
|
| 9 | 506 37 67 01 | Genuine Husqvarna K750 K760 K770 Cylinder Head Gasket - 506 37 67 01 |
£3.33 GBP
|
||
| 10 | 506 37 24 03 | Genuine Husqvarna K760 K770 Piston Assy |
£49.07 GBP
|
||
| 11 | 522 99 01 01 | Genuine Husqvarna K750 K760 K770 Piston Ring (Single Ring) |
£7.84 GBP
|
||
| 12 | 737 43 12 00 | Genuine Husqvarna K750 K760 K770 Circlip / Retaining Clip |
£1.71 GBP
|
||
| 13 | 5064123.01 | Partner K750 Exhaust Gasket |
£5.37 GBP
|
||
| 14 | 588 91 51 01 | Genuine Husqvarna K750 K760 K770 Cooling Plate |
£5.65 GBP
|
||
| 15 | 588 93 25 01 | Genuine Husqvarna K750 K760 K770 Exhaust Gasket |
£5.09 GBP
|
||
| 16 | 592 77 03 01 | Husqvarna K750 K760 Exhaust / Muffler |
£44.04 GBP
|
||
| 17 | 503 21 53 16 | Genuine Husqvarna K750 K760 K770 Screw |
£1.30 GBP
|
||
| 18 | 503 21 53 56 | Genuine Husqvarna K750 K760 K770 Exhaust Bolt |
£2.22 GBP
|
||
| 19 | 503 23 04 02 | Genuine Husqvarna K750 K760 K770 Washer - 503 23 04 02 |
£3.21 GBP
|
||
| 20 | 503 22 65 04 | Genuine Husqvarna K750 K760 K770 Square Nut |
£1.77 GBP
|
||
| 21 | 506 37 70 02 | Genuine Husqvarna K750 K760 K770 Crankcase Gasket |
£3.43 GBP
|
||
| 22 | 506 37 70 03 | Genuine Husqvarna K760 Crankcase Gasket |
£3.43 GBP
|
||
| 23 | 544 21 93 02 | Genuine Husqvarna K750 K760 K770 Insert |
£1.88 GBP
|
||
| 24 | 503 26 02 04 | Genuine Husqvarna K750 K760 K770 Sealing Ring |
£10.61 GBP
|
||
| 25 | 5063768.03 | Husqvarna Carb Gasket |
£0.00 GBP
|
||
| 26 | 577 57 24 01 | Genuine Husqvarna K750 K760 K770 Needle Bearing |
£13.65 GBP
|
