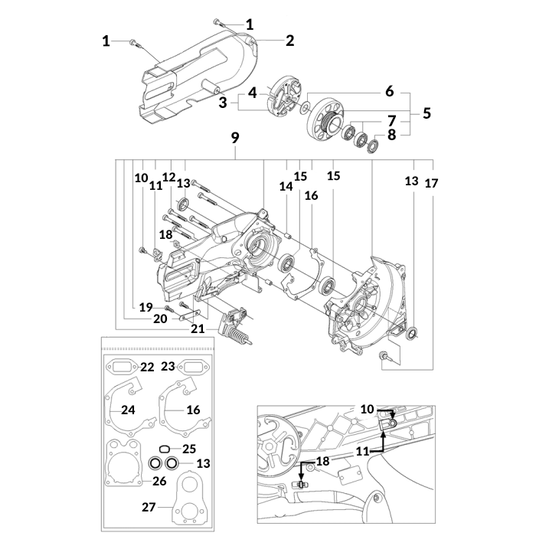

Husqvarna K760 Part Diagram - Crankcase Assembly
| Ref. | Image | SKU | Description | Price | Buy |
|---|---|---|---|---|---|
| 1 | 501 98 10 20 | Genuine Husqvarna K760 K770 Screw ITXSCM |
£2.00 GBP
|
||
| 2 | 581 48 59 01 | Genuine Husqvarna K750 K760 Belt Guard Cover |
£21.25 GBP
|
||
| 3 |
|
503 74 44 06 | Genuine Husqvarna K760 K770 Clutch Assy |
£42.68 GBP
|
|
| 4 | 503 74 43 01 | Genuine Husqvarna K750 K760 K770 Clutch Spring |
£4.45 GBP
|
||
| 5 | 590 80 59 01 | Genuine Husqvarna K750 K760 K770 Clutch Driving Pulley Kit |
£35.55 GBP
|
||
| 6 | 503 23 00 70 | Genuine Husqvarna K760 K770 Washer - 503 23 00 70 |
£1.77 GBP
|
||
| 7 |
|
529 60 26 01 | Genuine Husqvarna K750 K760 K770 Clutch Pulley Ball Bearing |
£8.42 GBP
|
|
| 8 | 506 31 69 01 | Genuine Husqvarna K750 K760 K770 Dust Cover |
£2.76 GBP
|
||
| 9 | 581 72 19 12 | Genuine Husqvarna K760 K770 Crankcase Assy |
£229.03 GBP
|
||
| 10 | 501 98 10 01 | Genuine Husqvarna K750 K760 K770 Screw - 501 98 10 01 |
£1.44 GBP
|
||
| 11 | 544 00 78 01 | Genuine Husqvarna K750 K760 K770 Bracket - 544 00 78 01 |
£4.99 GBP
|
||
| 12 | 503 21 53 41 | Genuine Husqvarna K750 K760 K770 Screw - 503 21 53 41 |
£2.00 GBP
|
||
| 13 | 503 26 02 04 | Genuine Husqvarna K750 K760 K770 Sealing Ring |
£10.61 GBP
|
||
| 14 | 593 80 60 01 | Guide Bushing for Husqvarna K760 Disc Cutter |
£4.90 GBP
|
||
| 15 | 738 22 02 25 | Genuine Husqvarna K750 K760 K770 Main Bearing |
£5.85 GBP
|
||
| 16 | 506 37 70 03 | Genuine Husqvarna K760 Crankcase Gasket |
£3.43 GBP
|
||
| 17 | 503 84 61 01 | Genuine Husqvarna K750 K760 K770 Buffer |
£4.38 GBP
|
||
| 18 | 503 22 65 04 | Genuine Husqvarna K750 K760 K770 Square Nut |
£1.77 GBP
|
||
| 19 | 503 21 53 16 | Genuine Husqvarna K750 K760 K770 Screw - 503 21 53 16 |
£1.44 GBP
|
||
| 20 | 522 47 48 01 | Genuine Husqvarna K750 K760 K770 Washer - 522 47 48 01 |
£1.44 GBP
|
||
| 21 |
|
598 58 69 01 | Genuine Husqvarna Anti Vibration Spring Retainer fits K760, K760 CUT-N-BREAK, K760 RESCUE,K770 Disc Cutters |
£23.78 GBP
|
|
| 22 | 5064123.01 | Partner K750 Exhaust Gasket |
£5.37 GBP
|
||
| 23 | 588 93 25 01 | Genuine Husqvarna K750 K760 K770 Exhaust Gasket |
£5.09 GBP
|
||
| 24 | 506 37 70 02 | Genuine Husqvarna K750 K760 K770 Crankcase Gasket |
£3.43 GBP
|
||
| 25 | 544 21 93 02 | Genuine Husqvarna K750 K760 K770 Insert |
£1.88 GBP
|
||
| 26 | 506 37 67 01 | Genuine Husqvarna K750 K760 K770 Cylinder Head Gasket - 506 37 67 01 |
£3.33 GBP
|
||
| 27 | 5063768.03 | Husqvarna Carb Gasket |
£0.00 GBP
|
