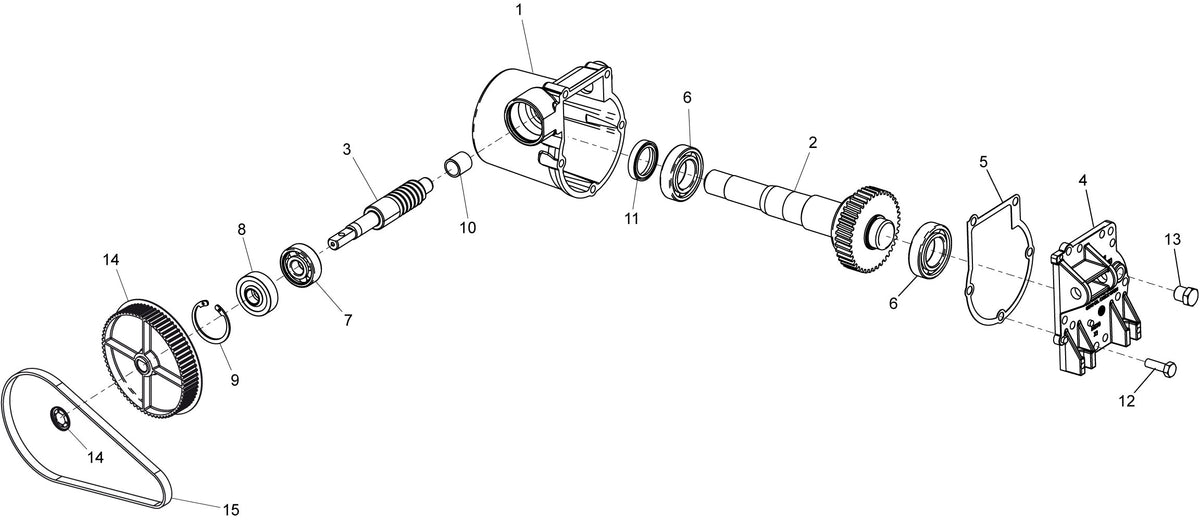

Belle Minimix 150 Parts Diagram - Gearbox Assembly (Up To Oct 04)

Belle Minimix 150 Parts Diagram - Gearbox Assembly (Up To Oct 04) Parts Diagram

Search by reference number, SKU, or part name to quickly locate a part.

  • 1
    Genuine Belle Gearbox Assembly Fits Minimix 150 From July 1999

    Genuine Belle Gearbox Assembly Fits Minimix 150 From July 1999

    SKU: 900/37600 • Genuine Part
    £91.80 GBP
    In stock
  • 2
    Genuine Belle Wormwheel Drum Shaft Fits Minimix 140, Minimix 150, Minimix 150E

    Genuine Belle Wormwheel Drum Shaft Fits Minimix 140, Minimix 150, Minimix 150E

    SKU: MS09 • Genuine Part
    £44.78 GBP
    In stock
  • 3
    Genuine Belle Mini Worm Shaft Fits Minimix 150

    Genuine Belle Mini Worm Shaft Fits Minimix 150

    SKU: 900/24701 • Genuine Part
    £17.10 GBP
    Out of stock
  • 4
    Genuine Belle Mini End Plate Fits Minimix 140, Minimix 150, Minimix 150E

    Genuine Belle Mini End Plate Fits Minimix 140, Minimix 150, Minimix 150E

    SKU: MS10 • Genuine Part
    £12.03 GBP
    In stock
  • 5
    Genuine Belle End Plate Mini Gasket Fits Minimix 140, Minimix 150, Minimix 150E

    Genuine Belle End Plate Mini Gasket Fits Minimix 140, Minimix 150, Minimix 150E

    SKU: MS11 • Genuine Part
    £0.62 GBP
    In stock
  • 6
    Genuine Belle Drum Shaft Bearing Fits Belle Minimix 140, Minimix 150, Minimix 150E, Post 1989

    Genuine Belle Drum Shaft Bearing Fits Belle Minimix 140, Minimix 150, Minimix 150E, Post 1989

    SKU: CMS10 • Genuine Part
    £4.05 GBP
    In stock
  • 7
    Genuine Belle Worm Shaft Bearing Fits Belle Premier T, Maxi 150, Minimix 140/150, Premier XT

    Genuine Belle Worm Shaft Bearing Fits Belle Premier T, Maxi 150, Minimix 140/150, Premier XT

    SKU: PS013 • Genuine Part
    £4.61 GBP
    In stock
  • 8
    Genuine Belle Oilseal 20 X 42.5 X 10 Fits Minimix 140, Minimix 150

    Genuine Belle Oilseal 20 X 42.5 X 10 Fits Minimix 140, Minimix 150

    SKU: CMS41 • Genuine Part
    £2.93 GBP
    Out of stock
  • 9
    Genuine Belle Circlip Fits Premier T, Minimix 140, Minimix 150, Premier XT, RPC Models

    Genuine Belle Circlip Fits Premier T, Minimix 140, Minimix 150, Premier XT, RPC Models

    SKU: MS22 • Genuine Part
    £0.68 GBP
    Out of stock
  • 10
    Genuine Belle Mini Oilite Bush 19 X 15 X 20 Fits Minimix 150, Minimix 150E

    Genuine Belle Mini Oilite Bush 19 X 15 X 20 Fits Minimix 150, Minimix 150E

    SKU: MS13 • Genuine Part
    £1.36 GBP
    Out of stock
  • 11
    Genuine Belle Drum Shaft Oil Seal B407 Fits Minimix 140, Minimix 150, Minimix 150E

    Genuine Belle Drum Shaft Oil Seal B407 Fits Minimix 140, Minimix 150, Minimix 150E

    SKU: CMS11 • Genuine Part
    £0.87 GBP
    In stock
  • 12
    No image

    Screw Set M8 x 25 SQ Flow BZP

    SKU: 7/8003 • Genuine Part
    Not priced
    Out of stock
    This part is not available.
  • 13
    Genuine Belle 1/4" Filler Bung Fits Minimix 140, Minimix 150, RTX Rammers

    Genuine Belle 1/4" Filler Bung Fits Minimix 140, Minimix 150, RTX Rammers

    SKU: MS12 • Genuine Part
    £1.58 GBP
    Out of stock
  • 14
    Genuine Belle Honda GXH50 & Robin Gearbox Pulley Kit 60Hz Fits Minimix 150

    •
  • 15
    Genuine Belle Honda GXH50 & Robin EH09 Drive Belt Fits Minimix 150

    •
    • ▼
Diagram zoom view
