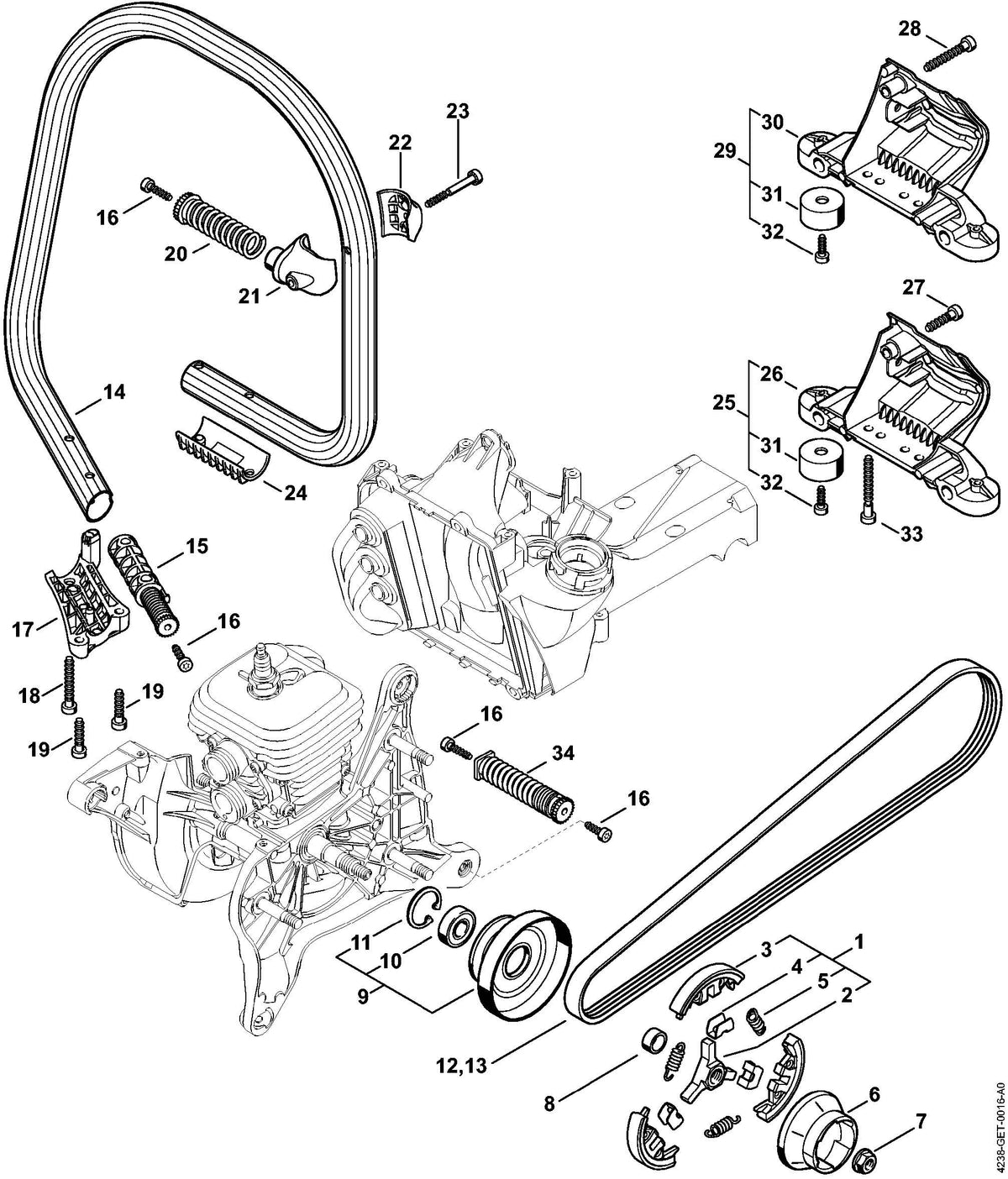

Stihl TS410 Parts Diagram - Clutch & Handlebar Assembly
| Ref. | Image | SKU | Description | Price | Buy |
|---|---|---|---|---|---|
| 1 |
|
4238 160 2002 | Genuine Stihl TS400 TS410 TS420 Clutch Assy |
£35.97 GBP
|
|
| 2 | 1125 162 3202 | Genuine Stihl TS400 TS410 TS420 Carrier |
£6.09 GBP
|
||
| 3 | 1128 162 0806 | Genuine Stihl TS400 TS410 TS420 Clutch Shoe |
£6.54 GBP
|
||
| 4 | 1128 162 3000 | Stihl TS410 TS420 Retainer |
£1.06 GBP
|
||
| 5 | 0000 997 5510 | Genuine Stihl TS400 TS410 TS420 Tension Spring |
£0.83 GBP
|
||
| 6 |
|
4238 195 0600 | Genuine Stihl TS410 TS420 Recoil Starter Cup |
£11.94 GBP
|
|
| 7 |
|
0000 955 0802 | Genuine Stihl TS410 Flywheel Nut |
£0.96 GBP
|
|
| 8 | 0000 036 0200 | Genuine Stihl TS410 TS420 Ring |
£1.97 GBP
|
||
| 9 |
|
4238 760 8500 | Genuine Stihl TS410 TS420 Poly V-Belt Pulley |
£36.24 GBP
|
|
| 10 | 9503 003 5136 | Genuine Stihl TS410 TS420 Clutch Bearing 6001-2RS |
£9.87 GBP
|
||
| 11 |
|
9456 621 3100 | Genuine Stihl TS410 TS420 Circlip 28 x 1.2 |
£0.84 GBP
|
|
| 12 |
|
9490 000 7901 | Genuine Stihl TS410 Drive Belt - OEM 5PJ746 |
£17.97 GBP
|
|
| 13 | 9490 000 7900 | Genuine Stihl TS420 Drive Belt |
£27.00 GBP
|
||
| 14 |
|
4238 791 1700 | Genuine Stihl TS410 TS420 Handle |
£40.00 GBP
|
|
| 15 |
|
4238 790 8301 | Genuine Stihl TS410 Anti Vibration / AV Spring |
£8.40 GBP
|
|
| 16 |
|
9074 478 4435 | Genuine TS410 Screw IS P6 x19 |
£0.61 GBP
|
|
| 17 |
|
4238 791 0910 | Genuine Stihl TS410 TS420 Handlebar Clamp |
£7.45 GBP
|
|
| 18 | 9074 478 4705 | Pan Head Self-Tapping Screw for Stihl TS410 TS420 P6 x 40 |
£0.95 GBP
|
||
| 19 | 9074 478 4143 | Genuine Stihl Pan Head Self Tapping Screw |
£0.73 GBP
|
||
| 20 |
|
4238 790 8302 | Genuine Stihl TS410 TS420 Anti-Vibration Spring |
£8.72 GBP
|
|
| 21 |
|
4238 791 1900 | Genuine Stihl TS410 TS420 Handlebar Support |
£4.80 GBP
|
|
| 22 |
|
4238 791 0900 | Genuine Stihl TS410 TS420 Handlebar Support Clamp |
£3.39 GBP
|
|
| 23 |
|
9075 478 4190 | Genuine Stihl Pan Head Self-Tapping Screw IS D5 x 45 |
£0.95 GBP
|
|
| 24 |
|
4238 791 0905 | Genuine Stihl TS410 TS420 Clamp |
£3.88 GBP
|
|
| 25 |
|
4238 790 7605 | Genuine Stihl TS410 (Newer Models) TS480i TS500i Support Foot |
£26.83 GBP
|
|
| 26 |
|
4238 791 7605 | Base Support for Stihl TS410 NEW TYPE |
£22.75 GBP
|
|
| 27 | 4238 790 7600 | Support |
£25.12 GBP
|
||
| 28 |
|
4238 791 7601 | Stihl TS410 TS420 Casting for Foot |
£16.63 GBP
|
|
| 29 |
|
4205 790 9300 | Genuine Stihl TS410 Rubber Foot |
£6.03 GBP
|
|
| 30 | 0000 951 1100 | Screw IS-D5x20 |
£1.66 GBP
|
||
| 31 |
|
9074 478 4706 | Genuine Stihl Pan Head Self-Tapping Screw for TS410 TS420 P6 x 50 |
£1.06 GBP
|
|
| 32 |
|
4238 790 8304 | Stihl TS410 Anti Vibration Spring |
£7.84 GBP
|
