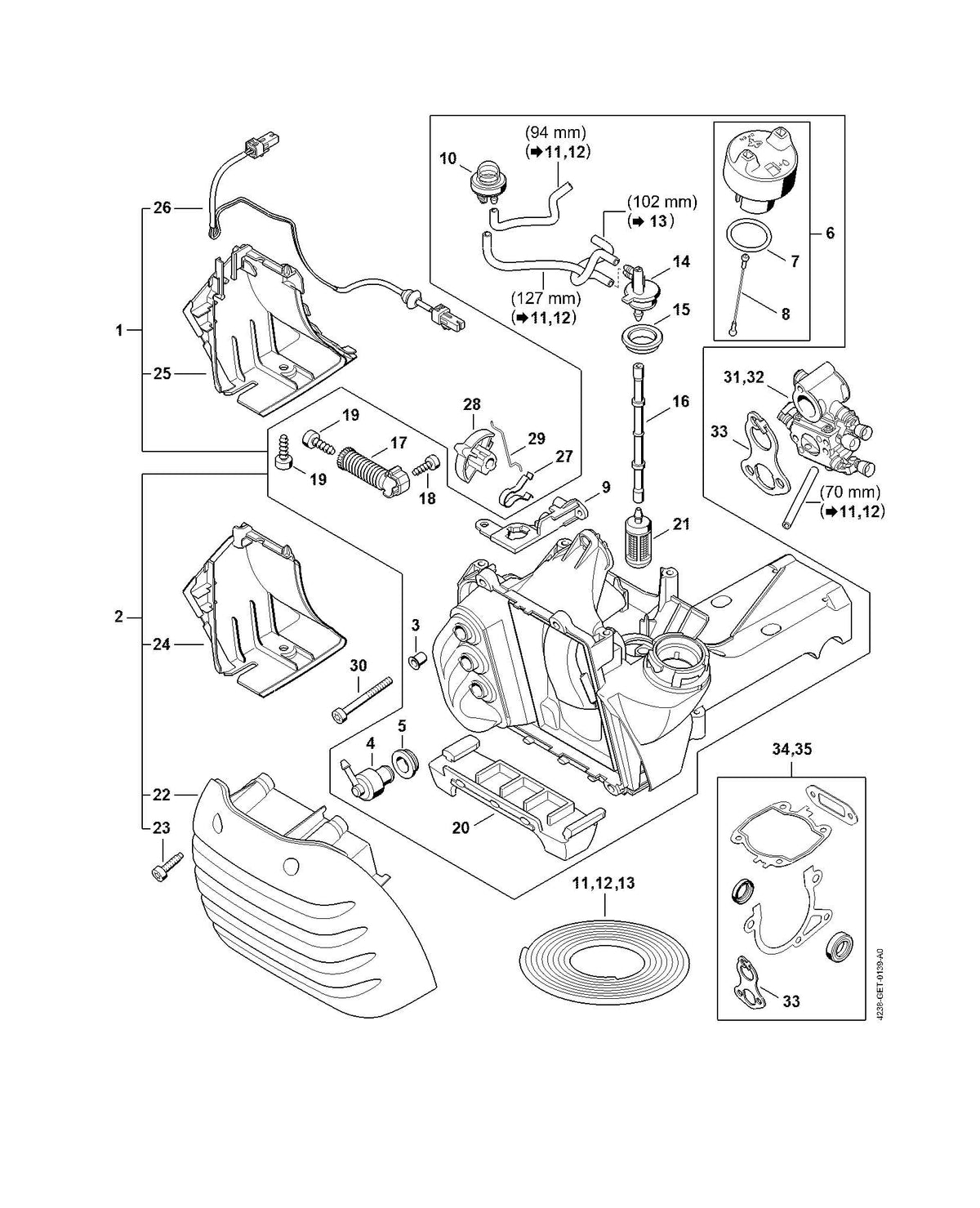

Stihl TS410 Parts Diagram - Fuel Tank & Carb Assembly

Ref.	Image	SKU	Description	Price	Buy
1		4238 350 0854	Stihl TS410 TS420 Fuel Tank Assembly	£183.08 GBP
2		9443 825 7131	Genuine Stihl TS410 TS420 Hollow Rivet (7.5 x 1 x 9.1)	£1.06 GBP
3		4223 353 9201	Grommet - 4223 353 9201	£1.06 GBP
4		4238 350 5800	Tank Vent	£7.55 GBP
5		0000 350 0514	Stihl TS410 TS420 Fuel Cap Assembly	£6.02 GBP
6		9645 948 2471	O Ring	£0.49 GBP
7		0000 350 0905	Rope	£1.55 GBP
8		4238 352 8201	Clamp - 4238 352 8201	£1.15 GBP
9		4238 350 6201	Genuine Stihl TS410 TS420 Primer Bulb / Fuel Pump	£8.69 GBP
10		0000 930 2803	Stihl TS410 TS420 Fuel Hose (1m)	£3.00 GBP
11		4238 353 2701	Connector - 4238 353 2701	£2.53 GBP
12		4238 353 9200	Grommet - 4238 353 9200	£1.36 GBP
13		4238 358 7700	Genuine Stihl TS410 TS420 Fuel Hose	£4.22 GBP
14		4238 790 8300	Stihl TS410 Spring	£7.30 GBP
15		9074 477 4130	Genuine Stihl TS410 TS420 Pan Head Self Tapping Screw IS P5 x 16	£0.60 GBP
16		9074 478 4435	Genuine TS410 Screw IS P6 x19	£0.61 GBP
17		4238 354 0100	Genuine Stihl TS410 TS420 TS440 Support Foot	£4.25 GBP
18		0000 350 3502	Genuine Stihl Pick Up Body	£4.50 GBP
19		4238 140 1000	Genuine Stihl TS410 TS420 Air Filter Cover	£28.57 GBP
20		0000 951 1109	Genuine Stihl TS410 TS420 Screw IS M5 x 20	£1.21 GBP
21		4238 141 6300	Air Baffle - 4238 141 6300	£7.06 GBP
22		4238 121 2400	Choke Lever Spring for Stihl TS410 TS420	£1.40 GBP
23		4238 121 6100	Stihl TS410 Choke Lever	£5.85 GBP
24		4238 185 1500	TS410 Choke Road	£1.00 GBP
25		9022 341 1220	Genuine Stihl TS410 TS420 Spline Screw (M5 x 48)	£0.95 GBP
26		4238 129 0900	Stihl TS410 CARB gasket	£4.00 GBP
27		4238 120 0603	Stihl TS410 TS420 Carburettor C1Q-S118C	£157.81 GBP
