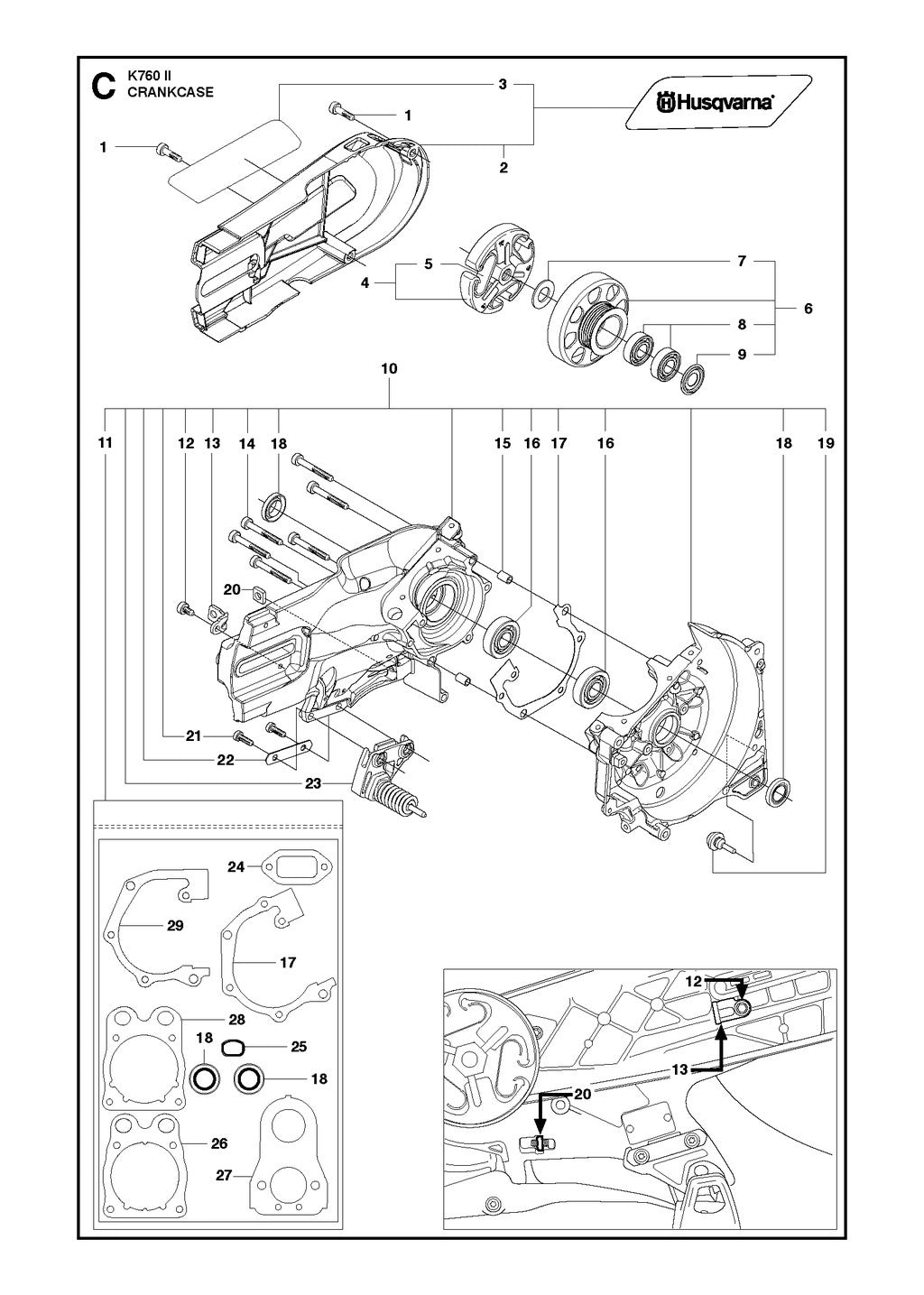

Husqvarna K760 Parts Diagram - Crankcase

Husqvarna K760 Parts Diagram - Crankcase Parts Diagram

Search by reference number, SKU, or part name to quickly locate a part.

  • 1
    Genuine Husqvarna K760 K770 Screw ITXSCM

    Genuine Husqvarna K760 K770 Screw ITXSCM

    SKU: 501 98 10 20 • Genuine Part
    £2.00 GBP
    Out of stock
  • 2
    No image

    Product unavailable

    This part is not available.
  • 3
    No image

    Product unavailable

    This part is not available.
  • 4
    Genuine Husqvarna K760 K770 Clutch Assy

    Genuine Husqvarna K760 K770 Clutch Assy

    SKU: 503 74 44 06 • Genuine Part
    £44.39 GBP
    In stock
  • 5
    Genuine Husqvarna K750 K760 K770 Clutch Spring

    Genuine Husqvarna K750 K760 K770 Clutch Spring

    SKU: 503 74 43 01 • Genuine Part
    £4.45 GBP
    Out of stock
  • 6
    Genuine Husqvarna K750 K760 K770 Clutch Driving Pulley Kit

    Genuine Husqvarna K750 K760 K770 Clutch Driving Pulley Kit

    SKU: 590 80 59 01 • Genuine Part
    £35.55 GBP
    In stock
  • 7
    No image

    Genuine Husqvarna K760 K770 Washer - 503 23 00 70

    SKU: 503 23 00 70 • Genuine Part
    £1.77 GBP
    Out of stock
  • 8
    Genuine Husqvarna K750 K760 K770 Clutch Pulley Ball Bearing

    Genuine Husqvarna K750 K760 K770 Clutch Pulley Ball Bearing

    SKU: 529 60 26 01 • Genuine Part
    £8.42 GBP
    In stock
  • 9
    No image

    Genuine Husqvarna K750 K760 K770 Dust Cover

    SKU: 506 31 69 01 • Genuine Part
    £2.76 GBP
    Out of stock
  • 10
    Genuine Husqvarna K760 K770 Crankcase Assy

    Genuine Husqvarna K760 K770 Crankcase Assy

    SKU: 581 72 19 12 • Genuine Part
    £229.03 GBP
    Out of stock
  • 11
    Genuine Husqvarna K760 & K770 Gasket Kit

    •
  • 12
    No image

    Genuine Husqvarna K750 K760 K770 Screw - 501 98 10 01

    SKU: 501 98 10 01 • Genuine Part
    £1.44 GBP
    Out of stock
  • 13
    Genuine Husqvarna K750 K760 K770 Bracket - 544 00 78 01

    Genuine Husqvarna K750 K760 K770 Bracket - 544 00 78 01

    SKU: 544 00 78 01 • Genuine Part
    £4.99 GBP
    Out of stock
  • 14
    Genuine Husqvarna K750 K760 K770 Screw - 503 21 53 41

    Genuine Husqvarna K750 K760 K770 Screw - 503 21 53 41

    SKU: 503 21 53 41 • Genuine Part
    £2.00 GBP
    Out of stock
  • 15
    No image

    Product unavailable

    This part is not available.
  • 16
    Crankshaft Bearing fits Husqvarna K750 K760 K770

    •
  • 17
    Genuine Husqvarna K760 Crankcase Gasket

    •
  • 18
    Crankshaft Seal fits Husqvarna K750 K760 K770 K950 K960 K970 K1250 K1260

    •
  • 19
    Genuine Husqvarna K750 K760 K770 Buffer

    Genuine Husqvarna K750 K760 K770 Buffer

    SKU: 503 84 61 01 • Genuine Part
    £4.38 GBP
    Out of stock
  • 20
    Genuine Husqvarna K750 K760 K770 Square Nut

    Genuine Husqvarna K750 K760 K770 Square Nut

    SKU: 503 22 65 04 • Genuine Part
    £1.77 GBP
    Out of stock
  • 21
    Genuine Husqvarna K750 K760 K770 Screw - 503 21 53 16

    Genuine Husqvarna K750 K760 K770 Screw - 503 21 53 16

    SKU: 503 21 53 16 • Genuine Part
    £1.44 GBP
    Out of stock
  • 22
    No image

    Genuine Husqvarna K750 K760 K770 Washer - 522 47 48 01

    SKU: 522 47 48 01 • Genuine Part
    £1.44 GBP
    Out of stock
  • 23
    Genuine Husqvarna Anti Vibration Spring Retainer fits K760, K760 CUT-N-BREAK, K760 RESCUE,K770 Disc Cutters

    Genuine Husqvarna Anti Vibration Spring Retainer fits K760, K760 CUT-N-BREAK, K760 RESCUE,K770 Disc Cutters

    SKU: 598 58 69 01 • Genuine Part
    £24.73 GBP
    In stock
  • 24
    Exhaust Gasket fits Husqvarna K750 K760 K770

    •
  • 25
    Genuine Husqvarna K750 K760 K770 Insert

    Genuine Husqvarna K750 K760 K770 Insert

    SKU: 544 21 93 02 • Genuine Part
    £1.88 GBP
    Out of stock
  • 26
    Cylinder Head Gasket fits Husqvarna K750 K760 K770 K950 K960 K970

    •
  • 27
    Genuine Husqvarna K750 K760 K770 Carb Gasket

    Genuine Husqvarna K750 K760 K770 Carb Gasket

    SKU: 506 37 68 04 • Genuine Part
    £2.44 GBP
    Out of stock
  • 28
    No image

    •
  • 29
    Crankcase Gasket 5 Hole fits Husqvarna K750 K760 K770

    •
    • ▼
Diagram zoom view
