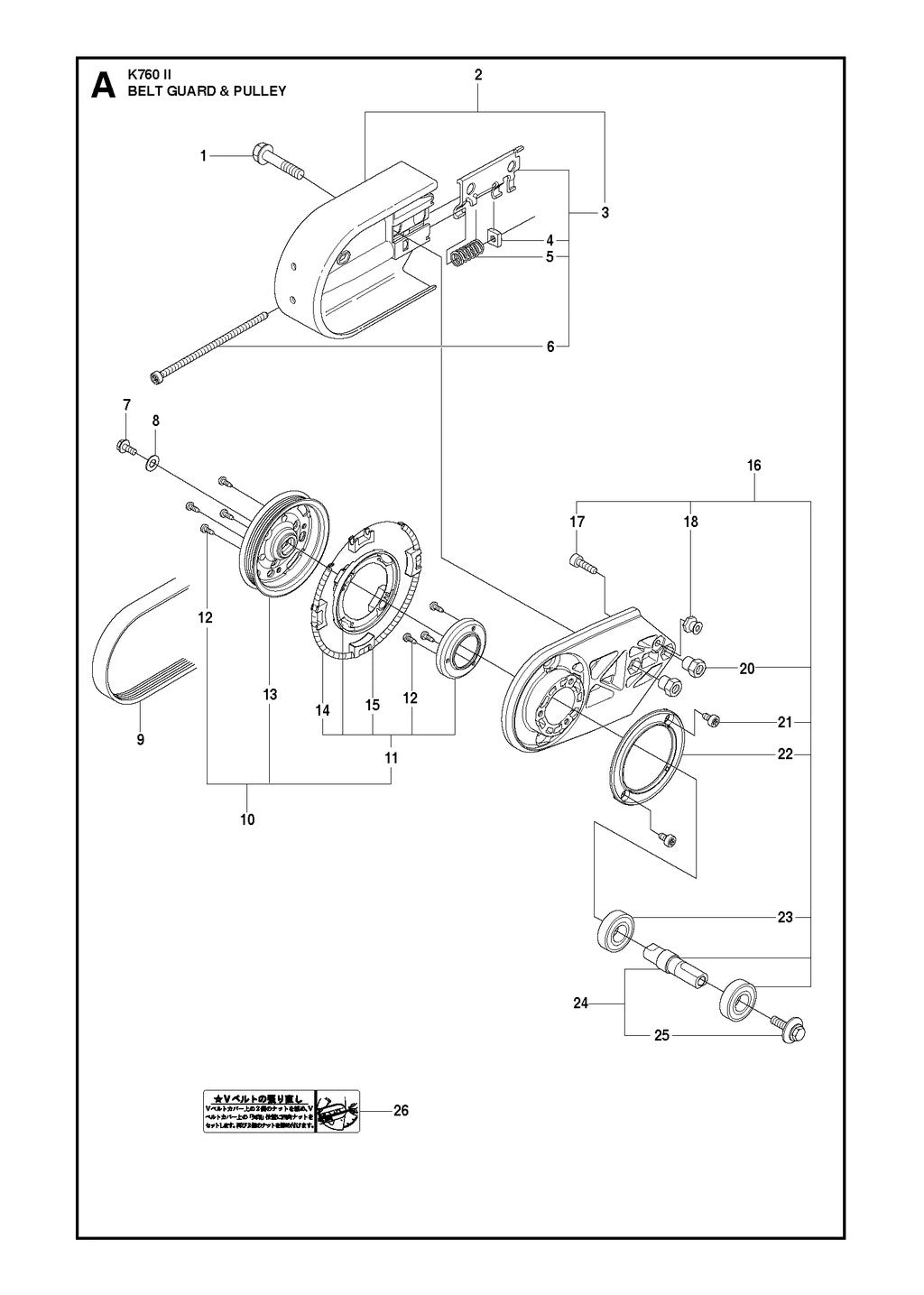

Husqvarna K760 Parts Diagram - Belt Guard & Pulley

Husqvarna K760 Parts Diagram - Belt Guard & Pulley Parts Diagram

Search by reference number, SKU, or part name to quickly locate a part.

  • 1
    No image

    Bolts

    SKU: 506 28 44 01 • Genuine Part
    Not priced
    Out of stock
    This part is not available.
  • 2
    Genuine Husqvarna K750 K760 Belt Guard

    Genuine Husqvarna K750 K760 Belt Guard

    SKU: 506 39 36 02 • Genuine Part
    £28.85 GBP
    Out of stock
  • 3
    No image

    •
  • 4
    Genuine Husqvarna K750 K760 K770 Nut - 506 40 93 01

    Genuine Husqvarna K750 K760 K770 Nut - 506 40 93 01

    SKU: 506 40 93 01 • Genuine Part
    £2.04 GBP
    Out of stock
  • 5
    Genuine Husqvarna K750 K760 K770 Compression Spring

    Genuine Husqvarna K750 K760 K770 Compression Spring

    SKU: 506 26 68 01 • Genuine Part
    £3.68 GBP
    In stock
  • 6
    No image

    Genuine Husqvarna K750 K760 K770 Screw - 503 20 72 05

    SKU: 503 20 72 05 • Genuine Part
    £4.02 GBP
    Out of stock
  • 7
    Genuine Husqvarna K750 K760 K770 Bolt

    Genuine Husqvarna K750 K760 K770 Bolt

    SKU: 503 20 00 45 • Genuine Part
    £2.68 GBP
    Out of stock
  • 8
    Genuine Husqvarna K750 K760 K770 Washer - 503 23 01 16

    Genuine Husqvarna K750 K760 K770 Washer - 503 23 01 16

    SKU: 503 23 01 16 • Genuine Part
    £0.70 GBP
    Out of stock
  • 9
    Genuine Husqvarna/Partner K750 K760 Power Cutter Drive Belt

    •
  • 10
    Genuine Husqvarna K750 K760 K770 Pulley Assy

    Genuine Husqvarna K750 K760 K770 Pulley Assy

    SKU: 588 47 04 03 • Genuine Part
    £40.15 GBP
    In stock
  • 11
    Genuine Husqvarna K750 K760 K770 Friction Retarder Cassette

    Genuine Husqvarna K750 K760 K770 Friction Retarder Cassette

    SKU: 505 44 54 05 • Genuine Part
    £25.98 GBP
    Out of stock
  • 12
    Genuine Husqvarna Screw CCRPANT

    •
  • 13
    Genuine Husqvarna K750 K760 K770 Pulley

    Genuine Husqvarna K750 K760 K770 Pulley

    SKU: 590 89 58 01 • Genuine Part
    £17.35 GBP
    Out of stock
  • 14
    Genuine Husqvarna K750 K760 K770 Draw Spring

    Genuine Husqvarna K750 K760 K770 Draw Spring

    SKU: 544 44 10 01 • Genuine Part
    £2.89 GBP
    Out of stock
  • 15
    No image

    Genuine Husqvarna K750 K760 K770 Brake Shoe

    SKU: 544 44 04 02 • Genuine Part
    £4.02 GBP
    Out of stock
  • 16
    Genuine Husqvarna K750 K760 K770 K970 II Bearing Housing Assy

    Genuine Husqvarna K750 K760 K770 K970 II Bearing Housing Assy

    SKU: 581 35 17 10 • Genuine Part
    £66.13 GBP
    Out of stock
  • 17
    Genuine Husqvarna K750 K760 K770 Screw ITXSCT - 505 57 41 16

    Genuine Husqvarna K750 K760 K770 Screw ITXSCT - 505 57 41 16

    SKU: 505 57 41 16 • Genuine Part
    £1.44 GBP
    Out of stock
  • 18
    Genuine Husqvarna K750 K760 K770 Nut Cap

    Genuine Husqvarna K750 K760 K770 Nut Cap

    SKU: 506 14 32 01 • Genuine Part
    £6.19 GBP
    Out of stock
  • 20
    No image

    Product unavailable

    This part is not available.
  • 21
    Partner K750 Screw

    •
  • 22
    Genuine Husqvarna K750 K760 K770 Sealing Washer

    Genuine Husqvarna K750 K760 K770 Sealing Washer

    SKU: 579 73 37 01 • Genuine Part
    £4.54 GBP
    Out of stock
  • 23
    Genuine Husqvarna K750 K760 Ball Bearing

    Genuine Husqvarna K750 K760 Ball Bearing

    SKU: 583 95 33 01 • Genuine Part
    £10.72 GBP
    Out of stock
  • 24
    No image

    Genuine Husqvarna K750 K760 K770 Blade Shaft

    SKU: 506 29 83 65 • Genuine Part
    £45.26 GBP
    Out of stock
  • 25
    Genuine Husqvarna K750 K760 K770 M10 Bolt Assembly

    Genuine Husqvarna K750 K760 K770 M10 Bolt Assembly

    SKU: 590 50 38 01 • Genuine Part
    £10.67 GBP
    In stock
  • 26
    No image

    Genuine Husqvarna K760 Label - 506 30 97 05

    SKU: 506 30 97 05 • Genuine Part
    £2.68 GBP
    Out of stock
    • ▼
Diagram zoom view
