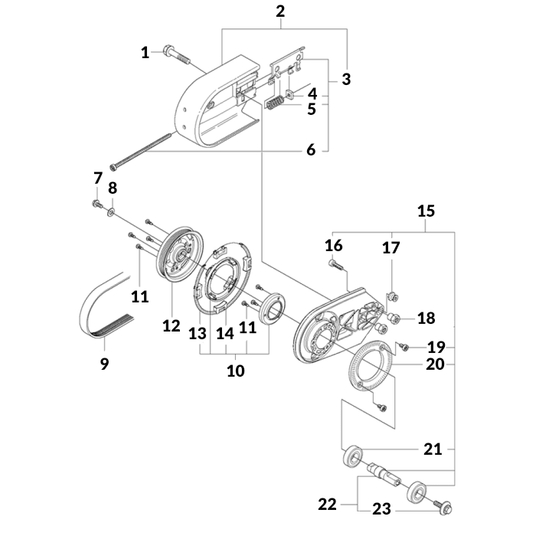

Husqvarna K760 Part Diagram - Belt Diagram

Ref.	Image	SKU	Description	Price	Buy
1		581 84 78 01	Genuine Husqvarna K750 K760 K770 Screw - 581 84 78 01	£2.78 GBP
2		506 39 36 02	Genuine Husqvarna K750 K760 Belt Guard	£28.85 GBP
3		506 26 66 04	Genuine Husqvarna K750 K760 Belt Tensioner	£14.43 GBP
4		506 40 93 01	Genuine Husqvarna K750 K760 K770 Nut - 506 40 93 01	£2.04 GBP
5		506 26 68 01	Genuine Husqvarna K750 K760 K770 Compression Spring	£3.30 GBP
6		503 20 72 05	Genuine Husqvarna K750 K760 K770 Screw - 503 20 72 05	£4.02 GBP
7		503 20 00 45	Genuine Husqvarna K750 K760 K770 Bolt	£2.68 GBP
8		503 23 01 16	Genuine Husqvarna K750 K760 K770 Washer - 503 23 01 16	£0.70 GBP
9		544 90 84 02	Genuine Husqvarna K750 K760 Drive Belt	£10.10 GBP
10		505 44 54 05	Genuine Husqvarna K750 K760 K770 Friction Retarder Cassette	£25.98 GBP
11		503 21 28 10	Genuine Husqvarna Screw CCRPANT	£0.95 GBP
12		590 89 58 01	Genuine Husqvarna K750 K760 K770 Pulley	£17.35 GBP
13		544 44 10 01	Genuine Husqvarna K750 K760 K770 Draw Spring	£2.89 GBP
14		544 44 04 02	Genuine Husqvarna K750 K760 K770 Brake Shoe	£4.02 GBP
15		581 35 17 10	Genuine Husqvarna K750 K760 K770 K970 II Bearing Housing Assy	£66.13 GBP
16		505 57 41 16	Genuine Husqvarna K750 K760 K770 Screw ITXSCT - 505 57 41 16	£1.44 GBP
17		506 14 32 01	Genuine Husqvarna K750 K760 K770 Nut Cap	£6.19 GBP
18		506 28 73 01	Genuine Husqvarna K750 K760 K770 Nut - 506 28 73 01	£6.60 GBP
19		503 21 53 10	Genuine Husqvarna K750 K760 K770 Screw - 503 21 53 10	£1.56 GBP
20		5062884.01	Husqvarna K750 Flange	£3.81 GBP
21		583 95 33 01	Genuine Husqvarna K750 K760 Ball Bearing	£10.72 GBP
22		506 29 83 65	Genuine Husqvarna K750 K760 K770 Blade Shaft	£45.26 GBP
23		5818552.01	Blade Bolt & Washer Kit	£15.10 GBP
