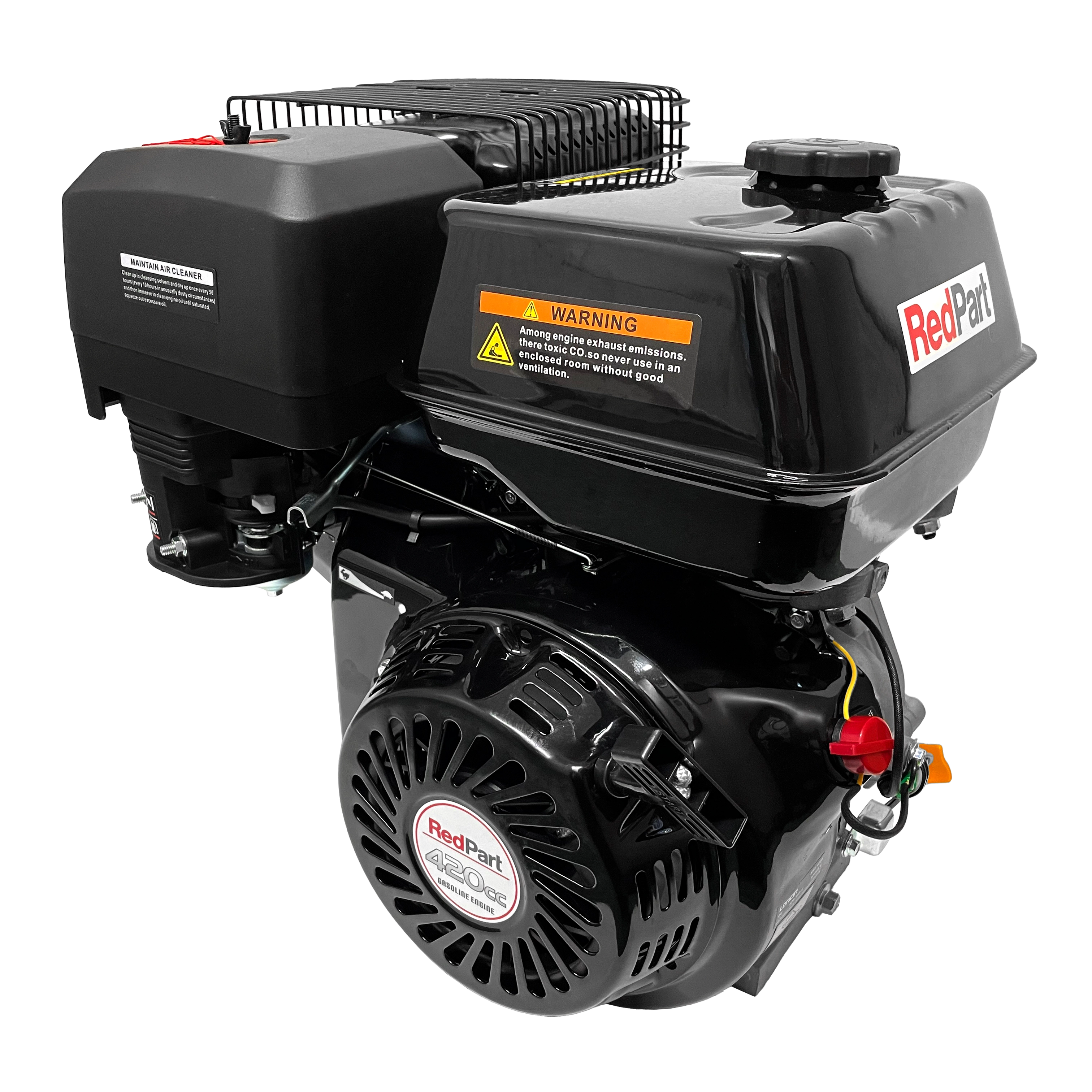

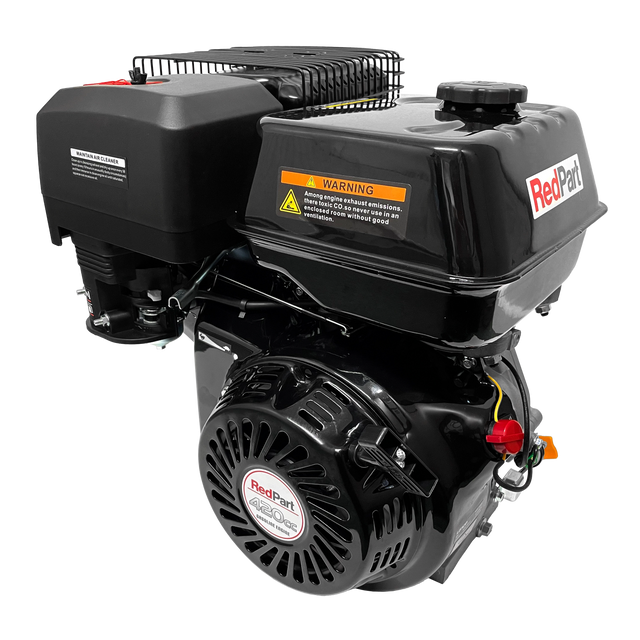

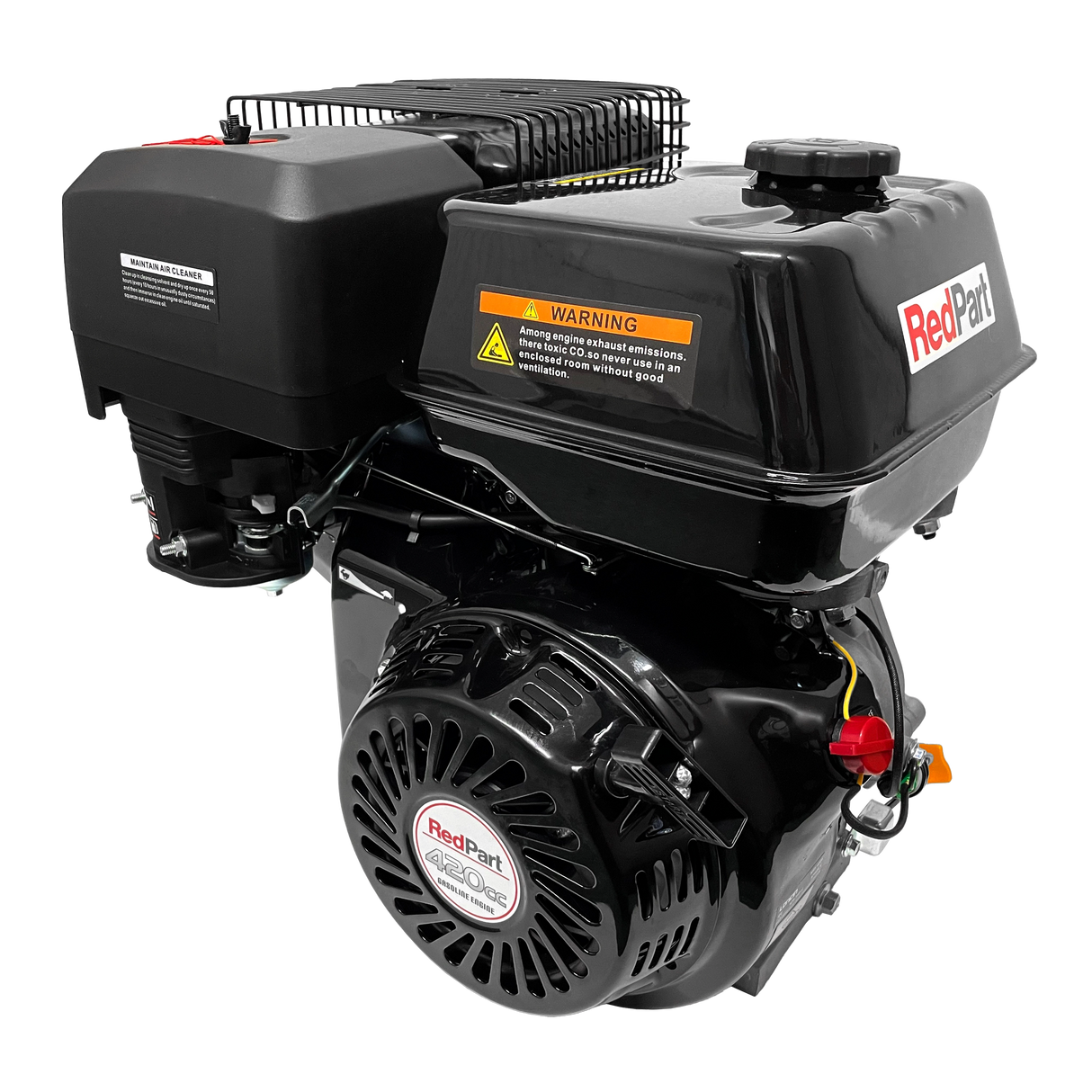

RedPart G420 Engine 12-15hp 1" Parallel Shaft Recoil Start
RedPart engines are powered by Loncin, delivering reliable performance and full compatibility with Loncin spare parts.
RedPart G420 Engine 12-15hp 1" Parallel Shaft Recoil Start
12-15hp RedPart engine with a 1” (25.4mm) parallel shaft. This engine is suitable to replace
Honda GX390 engines.
Specifications:
Recoil Start
Net Power - 12 / 9 @ 3600 r/min
Gross Power - 15 / 11.2 @ 3600 r/min
Net Torque - 26.5Nm @ 2500 r/min
Bore x Stroke (mm) - 90 x 66
Displacement (cc) - 420
Compression Ratio - 8.3 : 1
Oil Capacity (L) - 1.1
Fuel Consumption (g/kw h) - 374
Oil Consumption (g/kw h) - 6.8
Idle Speed - 1450 150
